Enlarge Gantry Lift

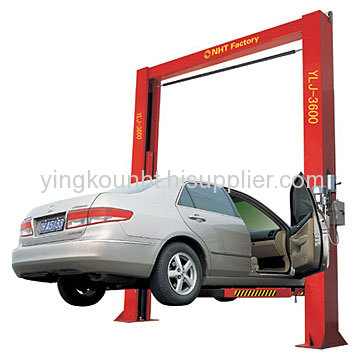

Gantry Lift

Payment Terms: T/T L/C
Place of Origin: Liaoning, China (Mainland)
inquire
Add to My Favorites
HiSupplier Escrow
Share |

Product Detail

Model No.: YLJ-3600
Packing: Cubic Meter: 2.04cbm
Brand Name: NHT
Certificate: CE
Means of Transport: Shipping
Delivery Date: 15 Days
Function: Lift The Car
Export Area: World Wide

YLJ-3600
With asymmetrical arms, 3.6 tons


YLJ-3600
With asymmetrical arms, 3.6 tons

Specifications:
Lifting Capacity: 3600Kg (8000lbs)
Max Lift Height: 1850mm
Minimum height: 120mm
Clearance between carriages: 2750mm
Total width:3450mm
Side pads total width: 500mm
Base side width: 1500mm
Long arm maximum length: 1360mm
Long arm minimum length: 890mm
Short arm maximum length: 1050mm
Short arm minimum length: 600mm
Lifting Time: 45s
Lowering Time: 30s
Power Supply Voltage: 220V/230V/380V/400V
Motor Power: 2.2Kw
Noise: <70dB
Net Weight: 830Kg (1850lbs)Gross Weight: 880Kg
Cubic Meter: 2.04cbm
Shipping: 9 pieces / 20' container
                   18 pieces / 40' container
                          (Still some space in the container but can only hold some other machines)
